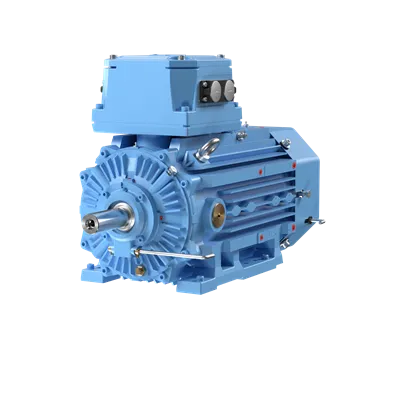

Model: M3BP 180MLA 2
3-Phase Squirrel Cage Motor, Type Code: M3BP 180MLA 2,
22.00 kW, 2956 r/min, 500V D, 50Hz, 30.100A, Cos. Phi 0.900;
Maximum Power: 22 kW, TCLB, 40°C, 1000m, IEC, IP55, IMB3/IM1001, IC411, ICLF, 50Hz: IE3 92.7 (100%), 93.1 (75%), 92.7 (50%), 60Hz: IE3 91.7 (100%), 91.6 (75%), 90.1 (50%)
